The State of the Migrate API in Drupal 8

Benji Fisher

February 5, 2019


The State of the Migrate API is Strong

Thanks for coming!

I know you have many entertainment choices this evening.

About Me

Yellow Pig

About Isovera


  • Strategy
  • Design
  • Development
  • Training

The Big Picture

Geese Fly North

USDA NRCS South Dakota (cc-by-sa-2.0)

New LAMP for Old

  • Site redesign
  • Old site is Drupal 7, Drupal 6, WordPress, …
  • New site is Drupal 8

All Your Data Are Belong To Us

Migrate API takes anything into Drupal 8:

  • Feed (XML, RSS, Atom)
  • CSV (Users, Events)
  • One time, incremental, update



  • Mike Ryan
  • Moshe Weitzman

Case study: The data migration to Drupal

Origins: Boston Drupal meetup

Mike Ryan’s notes from 2/21/2008:

Moshe opined that a specialist in the dirty work of content migration might really clean up. … Definitely an avenue I will look into pursuing…

Earlier versions

  • 6.x-1.x-dev: March 9, 2009
  • 6.x-1.0: March 20, 2010
  • 6.x-2.0: March 10, 2011
  • 7.x-2.0: March 10, 2011

What Migrate Does Well

Even the early versions did many things right:

  • Migrate keeps track of old/new IDs
  • Support iterations (rollback)
  • Incremental migration

Original Goals (D8)

  • This is our upgrade path! (D6 and D7)
  • Work through the admin UI
  • Config (Fields, Views, Date formats)
  • Content (Nodes, Comments, Blocks, Taxonomy)
  • Handle all sorts of modules

Would You Believe …

  • Simple, 1-language sites via admin UI
  • Robust tools for custom migrations
  • Keep all the good parts of earlier versions

Basic Migration Structure (ETL)

Extract, Transform, Load (ETL)

The Migrate API follows the standard ETL approach:

  1. Extract (Source): Get the old data.
  2. Transform (Process): Massage the data.
  3. Load (Destination): Create nodes, taxonomy, users, …

Extract (Source)

  • Another Drupal site (D6, D7, D8)
  • Another CMS (WordPress, SiteCore, custom)
  • Static XML, CSV, SQL
  • Dynamic XML, JSON (Feeds)
  • Other: FoxPro, Google Sheets

Extract (continued)

Some people put a lot of effort into this step, so that the next step is simple.

I prefer to do more work in the Transform (process) step. I think there is more opportunity for reusable code there.

There is no Right Way to do it.

Transform (Process)

  • Convert data formats
  • Clean up nasty markup (font, blink, marquee)
  • Split strings into lists
  • Split blobs into Paragraphs

Load (Destination)

  • Entity (node, taxonomy, user, …)
  • Config (field, view, …)

This short list is a feature, not a bug.

The Migrate API is written for Drupal. It already “knows” the destination.

Theory and Practice (ETL)

Read source Write destination
Extract Theory
Transform Practice Practice
Load Theory

Let Me Count the Ways

A typical migration project has several migrations, each with its own three stages.

“Several” means dozens. Maybe hundreds.

Easy, Not So Easy, Hard

The Easy Part

Migrate All the Things:

  • Files
  • Roles
  • Users
  • Taxonomy
  • Nodes

The Not So Easy Part

Migrate relations between things:

  • Roles attached to users
  • Taxonomy attached to nodes
  • Entity Reference (ER) fields
  • Links in Body fields
  • Previous/Next links

The Hard Part

  • Translations
  • Revisions
  • Field Collections and Paragraphs

Understand the Source


  • Prioritize
  • Migrate manually? (but relations are hard)
  • Bit bucket

Audit, Review, Explore

  • Structure (translations, revisions, references, nested data)
  • Markup
  • Internal links
  • What isn’t there? (e.g., meta tags)

What Could Possibly Go Wrong?

All the stuff your shiny, new site does not have:

  • Change your mind
  • Replicated structure from previous migrations
  • Undocumented features
  • Forgotten experiments
  • Trojan horses

If only there were one word …

Dumb Joke

Bigger Package 4 U

The Fun Part: Transform (Process)

Source and Destination

  plugin: d7_node
  node_type: article
  plugin: entity:node
  default_bundle: article

Simple Cases

    plugin: default_value
    source: language
    default_value: en
    plugin: callback
    source: title
    callable: trim
  status: status
  created: created

Migration Lookup

    plugin: migration_lookup
    migration: user
    source: node_uid

First Non-Empty (First Try)

      plugin: callback
      callable: array_filter
        - '@parent_tid'
        - tid
      plugin: callback
      callable: array_shift

First Non-Empty (New Way)

      plugin: callback
      callable: array_filter
        - '@parent_tid'
        - tid
      plugin: array_shift

First Non-Empty (Old Way)

      plugin: callback
      callable: array_filter
        - '@parent_tid'
        - tid
      plugin: callback
      callable: array_values
      plugin: extract
        - 0

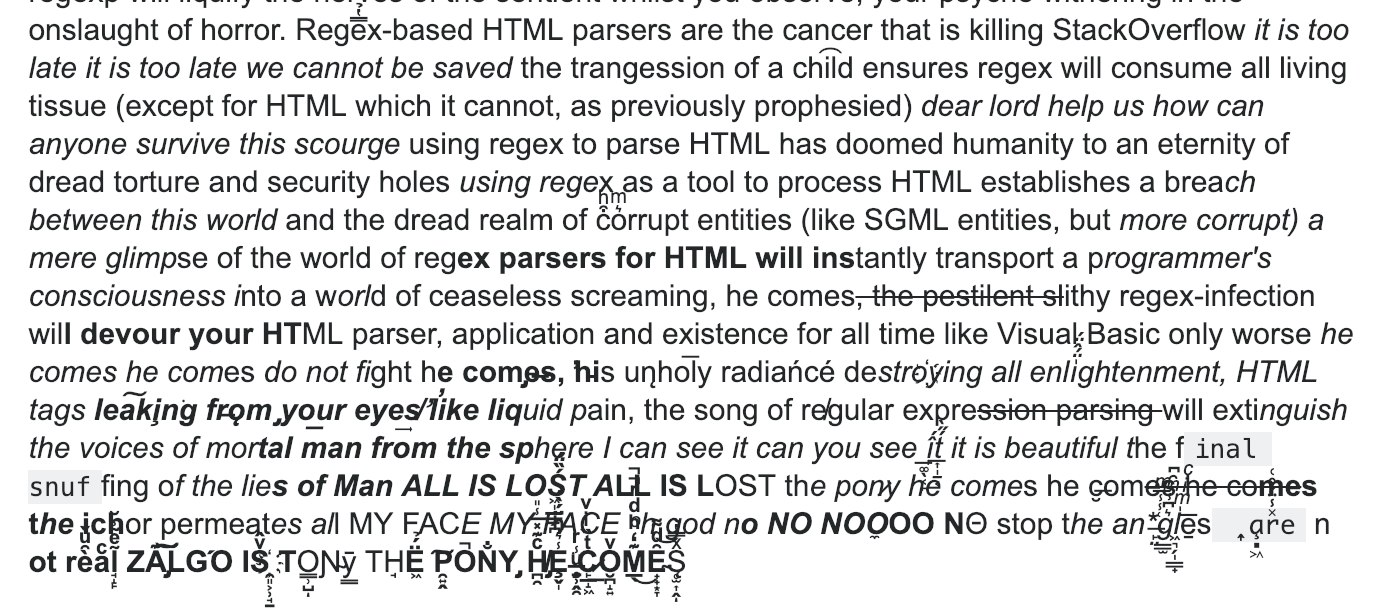

Parsing HTML (Cthulhu Way)

HTML (DOMDocument)

Styles menu in CKEditor

      plugin: dom
      method: import
      source: body
      plugin: dom_apply_styles
      format: pega_html
          xpath: '//h2'
          style: H2
      plugin: dom
      method: export (with Marco Villegas (@marvil07) for Pega)


General Advice (1/2)

  1. Understand the source.
  2. Look for test cases before you develop.
  3. Log a message whenever you skip an item.
    • unpublished
    • empty title or body
    • skip this language

General Advice (2/2)

  1. Develop and test small pieces
    • Understand why some content was skipped.
    • Do not copy untested code.
  2. You will make mistakes, so code review and QA are critical.

The Future

Feeds Migrate

The Feeds module in D8 should be a front end to the Migrate API.



Mike Ryan started Soong, a PHP library for ETL:

One goal: decouple from Drupal, e.g., the plugin system.

Job Security

  • June 3, 2020: Target for Drupal 9
  • November 2021: End of Life for D7, D8

Plenty of work for people who can handle custom migrations.

Job Insecurity

  • There is a better way.
  • Divide and Conquer.
  • Hard part: interface or API (Stroustrup)
  • JSON API, GraphQL
  • (Think of Gatsby.)

Migrations will not always be hard.



  • Introduction
  • The Big Picture
  • History
  • Basic Migration Structure (ETL)
  • Easy, Not So Easy, Hard
  • Understand the Source
  • The Fun Part: Transform (Process)
  • Advice
  • The Future
  • Summary

References (1/3)

References (2/3)

References (3/3)
