Caching Large Navigation Menus in Drupal

Benji Fisher

March 19, 2020

Before We Get Started

Push the Big, Red Button!

Big, red button

Follow along

https://benjifisher.gitlab.io/slide-decks/index.html

This just in

Fixed last week (8.9.x and 9.0.x): BookManager::buildItems() is slow because it loads nodes

I am pretty sure that I need both the optimization in this issue and some additional caching in order to improve my page-load times. I tried using each by itself and did not find any improvement.

Ask questions

Don’t be shy!

Introduction

About Me

Yellow Pig

About ???

Outline

  • Before We Get Started
  • Introduction
  • Book Navigation Needs To Be Cached
  • Internal vs. External Cache
  • Twig Template
  • Drupal Code
  • Hook Node View (review)
  • Peek At the Database
  • Conclusion

Book Navigation Needs To Be Cached

Pega Community Doc Page

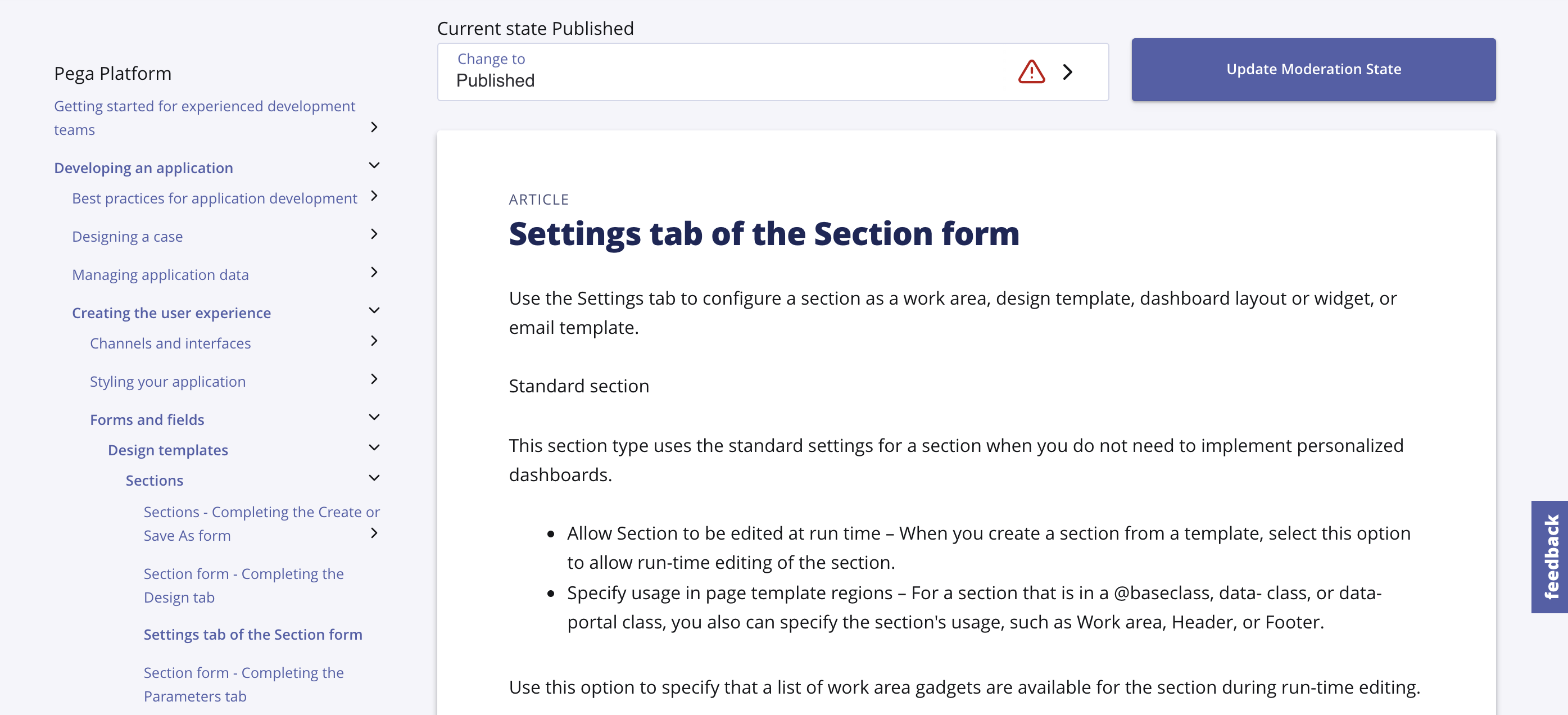

Book navigation is nested several levels

Numbers

  • 4472 pages in the book
  • 2.7 MB rendered (twice) for each page
  • 40-50 sec initial load
  • 6-9 sec load after caching

After I did this work, the cached page loads in 2-3 sec.

Strategy

  1. Use the same navigation on all pages
  2. Set active trail with javascript
  3. Cache the navigation once per book

Internal vs. External Cache

Drupal FTW

Caching is one of the strengths of Drupal 8.

Logo for Drupal 8

Internal Cache

Drupal stores bits and pieces in database or memcache or redis.

Diagram showing database on the left, Drupal on the right

External Cache

Whole pages are stored in the database, Varnish, or a CDN.

Diagram showing Drupal, database, browser

The Hard Part

For both internal and external caches, the hard part is knowing when to clear the cache.

Two hard things

  1. Naming things
  2. Off-by-one errors
  3. Cache invalidation

Twig Template

Twig Template (simplified)

{% if tree %}
  <nav class="c-book-nav" role="navigation" aria-labelledby="book-label-{{ book_id }}">
    <a href="{{ book_url }}">
      {{ top_book_title }}
    </a>
    {{ tree }}
  </nav>
{% endif %}

Twig Template (full)

{% if tree %}
  <nav class="c-book-nav" role="navigation" aria-labelledby="book-label-{{ book_id }}">
    {% if top_book_title %}
      {% if not top_book_empty %}
        <a href="{{ book_url }}">
      {% endif %}
        {{ top_book_title }}
      {% if not top_book_empty %}
        </a>
      {% endif %}
    {% endif %}
    {{ tree }}
  </nav>
{% endif %}

Drupal Code

Hook Node View

function pdn_book_node_view(array &$build, NodeInterface $node, EntityViewDisplayInterface $display, $view_mode) {
  if ($view_mode != 'full') {
    return;
  }
  if (empty($node->book['bid']) || !empty($node->in_preview)) {
    return;
  }
  $book_id = $node->book['bid'];
  $book_node = Node::load($book_id);
  if (!$book_node->access()) {
    return;
  }

  // Cache the navigation block once for the entire book.
  // We will set the active trail client-side.
  $build['book_nav'] = [
    '#theme' => 'book_nav',
    '#book_id' => $book_id,
    '#weight' => 100,
    '#cache' => [
      'keys' => ['pdn_book_nav', $book_id],
      'contexts' => ['languages'],
      'tags' => ["node:$book_id"],
      'max-age' => Cache::PERMANENT,
    ],
  ];
}

Hook Theme

function pdn_book_theme($existing, $type, $theme, $path) {
  return [
    'book_nav' => [
      'variables' => [
        'book_id' => 0,
      ],
    ],
  ];
}

Preprocess Function

function template_preprocess_book_nav(&$variables) {
  /** @var \Drupal\book\BookManager **/
  $book_manager = \Drupal::service('book.manager');

  // Get the nested array (tree) of menu links.
  $book_tree = $book_manager
    ->bookTreeAllData($variables['book_id']);
  // Generate a render array from the tree of links.
  $tree_output = $book_manager
    ->bookTreeOutput(array_shift($book_tree)['below']);

  $variables['tree'] = $tree_output;
  $variables['book_url'] = \Drupal::url(
    'entity.node.canonical',
    ['node' => $variables['book_id']]
  );
  $book_node = Node::load($variables['book_id']);
  $variables['top_book_title'] = $book_node->getTitle();
  $variables['top_book_empty']
    = !$book_node->hasField('field_body')
    || $book_node->get('field_body')->isEmpty();
}

Javascript

  Drupal.behaviors.bookNavExpand = {
    attach: function attach(context) {
      var bookNav = $('.c-book-nav', context);
      $('a[href="' + context.location.pathname + '"]', bookNav)
        .addClass('active')
        .parentsUntil(bookNav, '.c-book-nav--list-expandable')
        .addClass('c-book-nav--list-expanded')
        .children('a')
        .addClass('active');
      $('.c-book-nav--list-expanded > .c-book-nav--list', context)
        .once('bookNavExpandInit')
        .css('display', 'block');
      $('.c-book-nav--expand-arrow', context)
        .once('bookNavExpandClick')
        .on('click', function() {
          $(this).parent().toggleClass('c-book-nav--list-expanded');
          $(this).siblings('.c-book-nav--list').slideToggle();
        });
    }
  };

Hook Node View (review)

Hook Node View

  $build['book_nav'] = [
    '#theme' => 'book_nav',
    '#book_id' => $book_id,
    '#weight' => 100,
    '#cache' => [
      'keys' => ['pdn_book_nav', $book_id],
      'contexts' => ['languages'],
      'tags' => ["node:$book_id"],
      'max-age' => Cache::PERMANENT,
    ],
  ];

Cache Keys

  $build['book_nav'] = [
    '#cache' => [
      'keys' => ['pdn_book_nav', $book_id],
    ],
  ];
  • A unique string to identify “our” cache
  • The book ID

This is how we cache once per book.

Without cache keys, any cache data will bubble up.

Cache Contexts

  $build['book_nav'] = [
    '#cache' => [
      'contexts' => ['languages'],
    ],
  ];

If the book is viewed in another language, then the link text will change.

Maybe also the link URLs.

This site is not (yet) multilingual.

Cache Tags

  $build['book_nav'] = [
    '#cache' => [
      'tags' => ["node:$book_id"],
    ],
  ];

These are saved in the database.

When node/$book_id is updated, delete from the cache.

At page level, cache tags are sent in HTTP headers. Varnish/CDN invalidates based on cache tags.

Cache Max Age

  $build['book_nav'] = [
    '#cache' => [
      'max-age' => Cache::PERMANENT,
    ],
  ];

Keep the cached version until I say to clear it.

Peek At the Database

The cache_render Table

mysql> DESCRIBE cache_render;
+------------+---------------+------+-----+---------+-------+
| Field      | Type          | Null | Key | Default | Extra |
+------------+---------------+------+-----+---------+-------+
| cid        | varchar(255)  | NO   | PRI |         |       |
| data       | longblob      | YES  |     | NULL    |       |
| expire     | int(11)       | NO   | MUL | 0       |       |
| created    | decimal(14,3) | NO   | MUL | 0.000   |       |
| serialized | smallint(6)   | NO   |     | 0       |       |
| tags       | longtext      | YES  |     | NULL    |       |
| checksum   | varchar(255)  | NO   |     | NULL    |       |
+------------+---------------+------+-----+---------+-------+
7 rows in set (0.01 sec)

Query

mysql> SELECT cid, expire, created, tags, checksum
FROM cache_render
WHERE cid LIKE 'pdn_book%'
LIMIT 0,1\G
********************** 1. row **********************
       cid: pdn_book_nav:704369:[languages]=en:[theme]=pegawww_theme:[user.permissions]=4f64d6e20026c96e963d91bab0192f9824e8cb2e9352eb4c1ca18d78478abfdb
    expire: -1
   created: 1543638198.782
      tags: config:system.book.704369 node:704369 rendered
  checksum: 12
1 row in set (0.00 sec)

Cache ID

mysql> SELECT cid FROM cache_render
WHERE cid LIKE 'pdn_book%'
LIMIT 0,1\G
cid:
     pdn_book_nav:704369:
     [languages]=en:
     [theme]=pegawww_theme:
     [user.permissions]=4f64d6e20026c96e963d91bab0192f9824e8cb2e9352eb4c1ca18d78478abfdb
1 row in set (0.00 sec)
  • We specified pdn_book_nav in the cache keys
  • The book ID also comes from cache keys
  • languages comes from cache contexts
  • theme and permissions … see below

Cache Max Age

mysql> SELECT expire, created
FROM cache_render
WHERE cid LIKE 'pdn_book%'
LIMIT 0,1\G
********************** 1. row **********************
    expire: -1
   created: 1543638198.782
1 row in set (0.00 sec)

Cache Tags

mysql> SELECT tags
FROM cache_render
WHERE cid LIKE 'pdn_book%'
LIMIT 0,1\G
********************** 1. row **********************
      tags:
        config:system.book.704369
        node:704369
        rendered
1 row in set (0.00 sec)

Permissions Hash

Where do permissions come from?

See sites/default/services.yml:

parameters:
  renderer.config:
    # Renderer required cache contexts:
    #
    # The Renderer will automatically associate these cache
    # contexts with every render array, hence varying every
    # render array by these cache contexts.
    #
    # @default ['languages:language_interface', 'theme', 'user.permissions']
    required_cache_contexts:
      - 'languages:language_interface'
      - 'theme'
      - 'user.permissions'

Conclusion

Outline

  • Before We Get Started
  • Introduction
  • Book Navigation Needs To Be Cached
  • Internal vs. External Cache
  • Twig Template
  • Drupal Code
  • Hook Node View (review)
  • Peek At the Database
  • Conclusion

Questions

Thanks for listening!

Any questions?

Feedback

Please provide your feedback!

https://mid.camp/6322

MidCamp Contribution Day

Contribution Day

Saturday 10am to 4pm

You do not have to know how to code to give back!

New Contributor training 10am to Noon with AnyJune Hineline of Kanopi Studios
